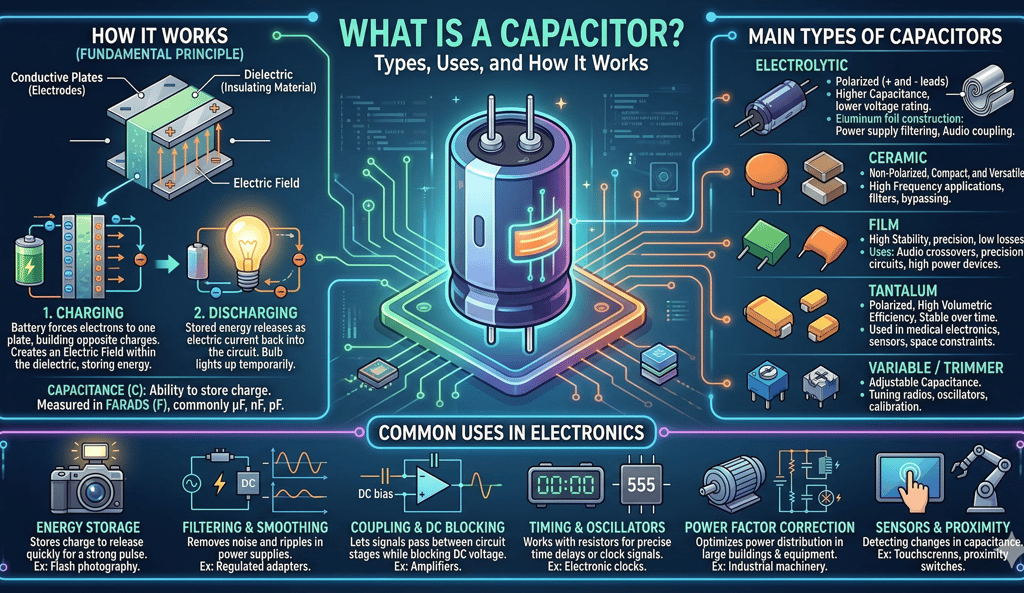

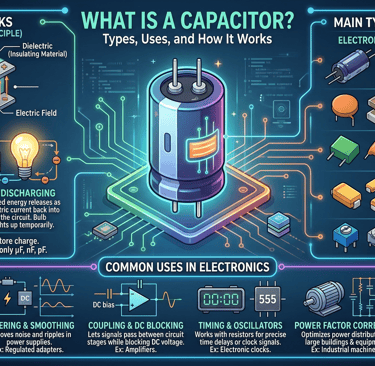

What Is a Capacitor? Types, Uses, and How It Works

After resistors, capacitors are the most common components in all of electronics. You will find them in virtually every circuit board, from smartphones to power stations. Yet for many beginners, capacitors remain mysterious — they know capacitors 'store charge' but are fuzzy on exactly how, or why that matters.

This guide demystifies capacitors completely. You will learn what a capacitor is at a physical level, how it stores and releases energy, all the major types available, how to read capacitor values, and the key applications that make capacitors indispensable in circuit design.

What Is a Capacitor?

A capacitor is a passive two-terminal electronic component that stores electrical energy in an electric field. It consists of two conductive plates (or surfaces) separated by an insulating material called a dielectric. When voltage is applied across the terminals, charge builds up on the plates — positive charge on one, negative on the other — creating an electric field in the dielectric.

The key insight about capacitors is that they store energy electrostatically (as an electric field) rather than electrochemically (like a battery). This means they can release their stored energy extremely quickly — far faster than any battery — making them ideal for filtering, buffering, and energy delivery in electronic circuits.

Capacitance: The Key Parameter

Capacitance (symbol: C) is the measure of a capacitor's ability to store charge for a given voltage. It is measured in Farads (F), named after Michael Faraday. The relationship is: C = Q / V, where Q is the charge stored (Coulombs) and V is the voltage across the capacitor.

One Farad is an enormous amount of capacitance for most electronic applications. In practice, you will most commonly work with: microfarads (uF, 10^-6 F), nanofarads (nF, 10^-9 F), and picofarads (pF, 10^-12 F). A typical decoupling capacitor might be 100nF (0.1uF). An electrolytic capacitor in a power supply might be 1000uF or more.

How a Capacitor Charges and Discharges

When you connect a capacitor to a voltage source through a resistor, the capacitor charges exponentially. Initially, when the capacitor is empty, all the source voltage appears across the resistor and maximum current flows. As the capacitor charges, its voltage rises and the voltage across the resistor (and therefore the current) falls. The charging process follows an RC time constant: tau = R x C.

After one time constant (tau seconds), the capacitor has charged to about 63.2% of the source voltage. After five time constants (5RC), it is considered fully charged (99.3%). This RC timing behaviour is the basis for timing circuits, filters, and oscillators.

When the source is removed and a load is connected, the capacitor discharges through the same exponential curve, releasing its stored energy into the circuit.

Types of Capacitors

Electrolytic Capacitors

Electrolytic capacitors use an electrochemical process to achieve very high capacitance values in a small package. The dielectric is an extremely thin oxide layer grown on an aluminium foil anode. This thin layer allows high capacitance (from 1uF to tens of thousands of uF) but makes electrolytics polarised — they have a positive (anode) and negative (cathode) terminal that must be connected correctly.

Connecting an electrolytic capacitor backwards can damage or destroy it — reversed voltage breaks down the oxide layer, causing the capacitor to fail catastrophically (sometimes dramatically). The negative lead is always marked with a stripe or minus symbols.

Electrolytics are used wherever high capacitance is needed: power supply filtering, audio coupling, and bulk energy storage. They have limited high-frequency performance and are not suitable for signal coupling in RF circuits.

Ceramic Capacitors

Ceramic capacitors use a ceramic material as the dielectric and are non-polarised — they can be connected either way around. They come in two main varieties: disc (lead-through-hole) and multilayer chip (SMD).

Small ceramic capacitors (a few pF to around 100nF) are stable, low-cost, and excellent for high-frequency applications. They are universally used for decoupling (bypassing) — placing a 100nF ceramic capacitor across the power supply pins of every IC to filter high-frequency noise. The X5R and X7R dielectric codes indicate temperature stability, with X7R being more stable over temperature range.

Large-value ceramic capacitors (1uF to 100uF, using X5R or X7R dielectric in large packages) have largely replaced electrolytic capacitors in many modern designs due to their reliability, low ESR, and non-polarised nature.

Film Capacitors

Film capacitors use a thin plastic film (polyester, polypropylene, polycarbonate) as the dielectric. They are non-polarised, extremely stable, low-noise, and have excellent frequency response. They are the preferred choice for precision timing circuits, audio crossovers, motor start/run applications, and any circuit where stability and low distortion matter.

They are physically larger than electrolytics or ceramics for equivalent capacitance, which limits their use in compact designs. Polyester (Mylar) film capacitors are common in signal coupling; polypropylene film capacitors are used in high-frequency power electronics.

Tantalum Capacitors

Tantalum capacitors use tantalum metal as the anode with manganese dioxide or a conductive polymer as the electrolyte. They offer higher capacitance density than electrolytics, better stability, lower ESR (equivalent series resistance), and a longer lifespan. They are polarised and widely used in portable electronics.

Important note: Tantalum capacitors can fail catastrophically (short-circuit with fire) if reverse-biased, over-voltaged, or subjected to current surges. They should always be used well below their rated voltage for reliability.

Supercapacitors (Ultracapacitors)

Supercapacitors store charge through electrostatic double-layer capacitance rather than a dielectric. They can achieve capacitances of 1 to 3000 Farads — orders of magnitude higher than conventional capacitors. They bridge the gap between capacitors (fast charge/discharge, low energy) and batteries (high energy, slow charge/discharge).

Applications include energy harvesting systems, backup power for memory circuits, regenerative braking in electric vehicles, and powering IoT sensor nodes from solar cells.

Reading Capacitor Values

Electrolytic Capacitors

Electrolytic capacitors are physically large enough to print the value directly on the body, e.g. '1000uF 25V' — capacitance in microfarads followed by the voltage rating. Always use a capacitor with a voltage rating higher than the maximum voltage it will see in circuit (typically 1.5x to 2x for reliability).

Ceramic Disc Capacitors

Small ceramic capacitors use a three-digit code similar to resistors. The first two digits are significant figures, the third is the multiplier (power of 10), and the result is in picofarads. '104' = 10 x 10^4 pF = 100,000 pF = 100 nF = 0.1 uF. '472' = 47 x 10^2 = 4700 pF = 4.7 nF.

A letter code after the number indicates tolerance: J = 5%, K = 10%, M = 20%.

Key Applications of Capacitors

Power Supply Filtering

Large electrolytic capacitors smooth the output of rectifiers in power supplies, converting pulsating DC to steady DC. The capacitor charges during voltage peaks and discharges during troughs, reducing ripple voltage.

Decoupling (Bypass Capacitors)

A 100nF ceramic capacitor placed as close as possible to each IC's power pin filters high-frequency noise generated by digital switching. This prevents noise from one chip contaminating the supply rail and causing other chips to malfunction. Every good PCB design includes decoupling capacitors on every power pin.

Timing Circuits

The RC time constant (tau = RC) is used to create precise time delays and oscillator frequencies. The 555 timer IC (see our dedicated guide on the 555 timer) uses an external RC network to set its timing period.

Signal Coupling and DC Blocking

A capacitor in series with a signal path passes AC signals while blocking DC. This is used to couple audio stages together without allowing the DC bias from one stage to affect the next, and to remove DC offsets from sensor signals.

Motor Start Capacitors

Single-phase AC motors use a capacitor to create a phase shift in the starting winding, producing the torque needed to start rotating. Motor run capacitors remain in circuit during normal operation to improve efficiency.

Capacitors in Series and Parallel

Unlike resistors, capacitors combine inversely. Capacitors in parallel: C_total = C1 + C2 + C3 (capacitances add — same as increasing plate area). Capacitors in series: 1/C_total = 1/C1 + 1/C2 (total capacitance decreases — same as increasing dielectric thickness).

Connecting capacitors in series also splits the voltage across them, which is sometimes used to achieve a higher voltage rating from lower-rated capacitors (though mismatched values will distribute voltage unevenly, and balancing resistors are needed).

Conclusion

Capacitors are essential components that every electronics student and hobbyist needs to understand. They store and release energy, filter noise, create timing delays, couple signals, and perform countless other functions in virtually every circuit.

Understanding the different types — electrolytic, ceramic, film, tantalum — helps you choose the right component for each application. And reading capacitor codes correctly ensures you always install the intended value.
