How to Use a Multimeter for Beginners: Step-by-Step Guide

3/19/2026

If you have ever tried to troubleshoot an electronics project or diagnose a broken appliance, you have probably heard someone say, 'Just check it with a multimeter.' But if you have never used one before, that advice can feel overwhelming. What exactly is a multimeter? Which dial do you turn? Where do you put the probes?

This complete beginner's guide will walk you through everything you need to know about using a multimeter safely and effectively. By the end of this article, you will be able to measure voltage, current, and resistance with confidence, and you will understand what those readings actually mean.

Whether you are building your first Arduino circuit, repairing a household appliance, or testing a car battery, a multimeter is the single most important tool in your electronics toolkit. Let's dive in.

What Is a Multimeter?

A multimeter is an electronic measuring instrument that combines several measurement functions in a single unit. The word 'multi' refers to the multiple types of electrical quantities it can measure. At its most basic, a standard multimeter measures three things: voltage (V), current (A), and resistance (Ohms).

More advanced models can also measure capacitance, frequency, temperature, transistor gain (hFE), diode forward voltage, and even continuity — a feature that beeps when a circuit path is complete.

There are two main types of multimeters:

Analog multimeter: Uses a needle and a printed scale. These are less common today but useful in some situations because the needle movement can show trends.
Digital multimeter (DMM): Displays readings on an LCD screen. This is what most hobbyists and professionals use, and it is what we will focus on in this guide.

For beginners, a digital multimeter is strongly recommended. They are inexpensive (quality models start from around $10), accurate, and much easier to read.

Parts of a Multimeter

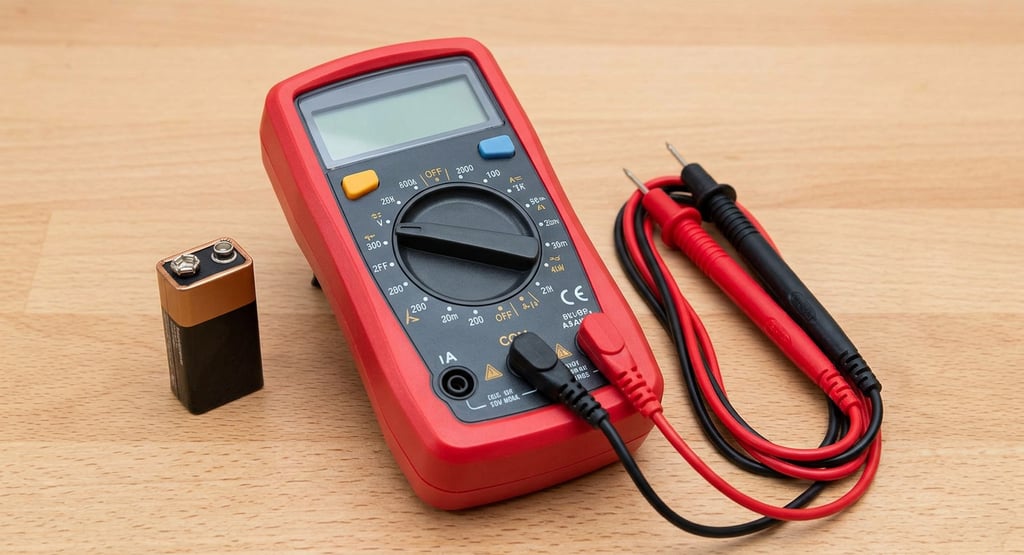

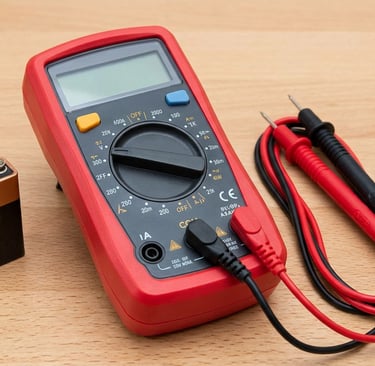

Before you start measuring anything, it helps to understand the physical layout of your multimeter. While designs vary by brand and model, most digital multimeters share the same core components.

1. The Display

The large LCD screen at the top shows your measurement. Most displays show four digits, meaning they can display readings like 1.234 or 199.9. Some advanced models have a backlight for use in dark spaces. Auto-ranging models will automatically select the correct range for your measurement, which is a great feature for beginners.

2. The Rotary Dial (Selection Knob)

The large dial in the middle of the meter is how you select what you want to measure. It rotates to different positions, each marked with a symbol. Common positions include DCV or V— for DC voltage, ACV or V~ for AC voltage, A or mA for current, and the Omega symbol for resistance.

3. The Input Ports (Jacks)

Most multimeters have three or four input jacks on the bottom:

COM (Common): The black probe always goes here. COM stands for common ground.
VΩmA: The red probe goes here for most measurements — voltage, resistance, and small currents.
10A or 20A: The red probe moves here only when measuring high currents above 200mA. Always check your manual.

4. The Test Probes

The two probes — one red (positive) and one black (negative) — connect to the multimeter through the jacks and physically touch the circuit or component you are testing. They are insulated for safety, but always handle them carefully.

Safety First: Rules You Must Follow

Before you touch anything with your multimeter, read these safety rules. Improper use can damage your meter, destroy a component, or in worst-case scenarios involving mains electricity, injure you.

Never measure resistance on a live (powered) circuit. Always power down and discharge capacitors first.
When measuring current, you must break the circuit and insert the multimeter in series — never connect it in parallel.
Check that your probe is in the correct port before applying it to a circuit.
Start with a high range if you are unsure of the expected value, then work down.
Never exceed the maximum rated voltage or current of your meter.
Keep your fingers behind the probe guard when taking measurements.

If you are working with mains-level voltages (110V or 220V), only proceed if you are confident in what you are doing. Beginners should stick to low-voltage DC circuits until they have more experience.

How to Measure DC Voltage

Measuring DC voltage is the most common multimeter task for electronics beginners. You will use this to check battery levels, verify power supply output, and confirm that a circuit component is receiving the correct voltage.

DC voltage is the steady, directional voltage produced by batteries, power supplies, and most electronic circuits. It is labelled as DCV or V— on your meter.

Step-by-Step: Measuring DC Voltage

Plug the black probe into the COM jack and the red probe into the VΩmA jack.
Turn the dial to DCV. If your meter is not auto-ranging, select a range higher than the voltage you expect. For a 9V battery, select the 20V range.
Touch the black probe to the negative terminal (or ground) of the circuit.
Touch the red probe to the positive terminal.
Read the voltage on the display. A fully charged 9V battery will read around 9.0–9.5V.

If the reading shows a negative number, you have the probes reversed. Swap them and re-read. A negative reading will not damage your meter — it just means polarity is reversed.

How to Measure AC Voltage

AC voltage is the alternating current used in household wall outlets. In most of the world, this is either 110V/120V (North America, Japan) or 220V/240V (Europe, Asia, Australia).

Measuring AC voltage follows the same basic steps as DC, with one change: turn the dial to ACV or V~. Note that for AC measurements, polarity does not matter — there is no positive or negative probe placement since the current alternates direction many times per second.

Caution: If you are measuring household mains voltage, exercise extreme caution. Ensure your probes are rated for the voltage level. A basic beginner's multimeter should only be used on mains by experienced users.

How to Measure Resistance

Resistance tells you how much a component opposes the flow of current. It is measured in Ohms (symbolised by the Greek letter Omega). You will use this setting to check whether a resistor is the value it claims to be, test whether a component has failed open-circuit, or verify wire continuity.

Step-by-Step: Measuring Resistance

Power off the circuit completely. Never measure resistance on a live circuit.
Remove the component from the circuit if possible, or at least disconnect one end. In-circuit resistance readings can be misleading due to parallel paths.
Plug probes into COM and VΩmA. Turn the dial to the Ohms (Omega) setting.
Touch both probes to either end of the component.
Read the resistance value on the display.

A reading of 'OL' or '1' on the far left of the display means overload — the resistance is higher than the selected range. Switch to a higher range or check if the component is open-circuit (broken).

A reading near zero means very low resistance, which is expected for wires but may indicate a short circuit in a component.

How to Measure Current (Amperes)

Current measurement is slightly trickier because you need to insert the multimeter into the circuit in series — meaning the current actually flows through the meter.

Step-by-Step: Measuring DC Current

Power off the circuit before connecting the multimeter.
If the expected current is below 200mA, plug the red probe into the VΩmA jack. If above 200mA, use the 10A jack.
Turn the dial to the matching current range (mA or A).
Break the circuit at the point where you want to measure current.
Connect the multimeter probes across the gap so the current flows through the meter.
Power on the circuit and read the current.

Important: Never connect the current-measuring probes across a voltage source like a battery. This creates a short circuit and can blow the meter's internal fuse — or worse.

Using the Continuity Function

Continuity mode is one of the most useful features on any digital multimeter. When enabled, it emits a beep if the two probes are connected by a low-resistance path. This tells you whether a wire is intact, a solder joint is good, or a fuse has blown.

To use continuity mode, turn the dial to the symbol that looks like a sound wave or a diode symbol (depending on your meter). Touch the probes together — the meter should beep immediately. Now touch each end of the wire or component you want to test. A beep means continuity exists; silence means the path is broken.

Continuity mode is invaluable for checking PCB traces, testing fuses, and finding broken wires in cable harnesses.

Common Mistakes Beginners Make

Leaving the probe in the current jack and trying to measure voltage — this will blow the fuse immediately.
Measuring resistance on a powered circuit and getting wildly inaccurate readings.
Using a manual-range meter on too low a range and getting an OL reading, then assuming the component is faulty.
Not accounting for battery discharge when interpreting voltage readings.
Touching bare metal probe tips together carelessly near live circuits.

Choosing Your First Multimeter

For beginners, you do not need to spend a lot of money. Here are features to look for in your first multimeter:

Auto-ranging: Automatically selects the correct measurement range. This removes a step for beginners and prevents incorrect range selection.
CAT rating: Look for CAT II or CAT III for general electronics and household use. CAT ratings indicate safety for different environments.
Continuity buzzer: A beeping continuity function is a must-have for circuit debugging.
True RMS: Important for accurate AC measurements. Not essential for pure DC work.
Backlit display: Helpful for working in dimly lit spaces.

Popular beginner models include the AstroAI AM33D, the Uni-T UT61E, and the Fluke 101. All offer excellent value for hobbyists and students.

Practice Exercises to Build Your Skills

The best way to get comfortable with a multimeter is to use it regularly on safe, low-voltage circuits. Here are some beginner exercises:

Measure the voltage of several AA, AAA, and 9V batteries. Note how fresh versus depleted batteries differ.
Measure the resistance of various resistors from your component drawer and compare with their color-coded values.
Test the continuity of different wires in a project. Check that solder joints beep correctly.
Build a simple LED circuit on a breadboard and measure the voltage across the LED and resistor.
Measure the current draw of an Arduino running a basic sketch.

Conclusion

A multimeter is arguably the most important tool any electronics enthusiast can own. With just a few basic skills — measuring voltage, resistance, current, and continuity — you can diagnose almost any circuit problem, verify component values, and build more reliable projects.

The key is to practise. Start with low-voltage DC circuits where mistakes are forgiving, and work your way up to more complex measurements as your confidence grows. Before long, reaching for the multimeter will become instinct every time something in a circuit is not working as expected.
