How to Program Arduino for the First Time: Complete Setup Guide

So you have an Arduino board — now what? The hardware is only half the story. To make your Arduino do anything useful, you need to program it: write code that tells it what to do, and upload that code from your computer to the board.

This complete beginner's guide walks you through every step of setting up the Arduino programming environment, understanding the structure of an Arduino program, uploading your first sketch, and common mistakes to avoid.

What Is Arduino Programming?

Arduino programs are called sketches. They are written in Arduino language — a simplified version of C++ with a library of pre-written functions that make hardware interaction straightforward. You write sketches in the Arduino IDE (Integrated Development Environment), then upload them to your board via USB.

Once uploaded, the sketch is stored permanently in the microcontroller's flash memory and runs automatically every time the Arduino is powered on — no computer connection needed after the initial upload.

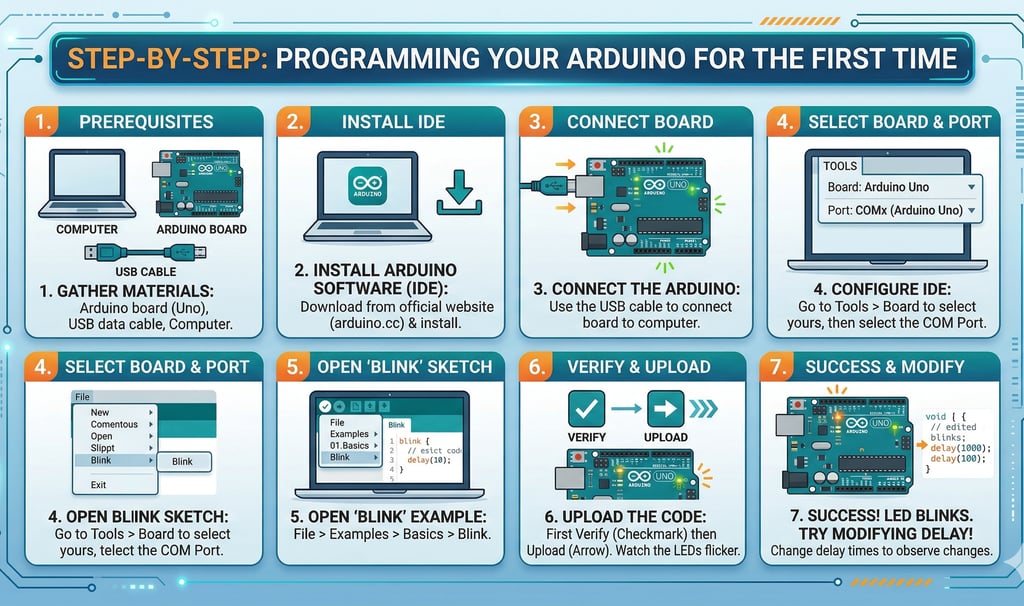

Step 1: Install the Arduino IDE

The Arduino IDE is the free software used to write, compile, and upload sketches. It runs on Windows, macOS, and Linux.

1. Visit arduino.cc/en/software

2. Download the Arduino IDE 2.x (the current version as of 2026). Choose the installer for your operating system.

3. Run the installer. On Windows, accept the driver installation prompt — Arduino needs drivers to communicate with the board via USB.

4. Launch the IDE. You should see a window with a text editor area, a toolbar at the top, and a console area at the bottom.

The Arduino IDE 2.x is a significant upgrade over the legacy 1.x version, featuring auto-complete, built-in debugger, board manager, and library manager.

Step 2: Configure Your Board

The IDE needs to know which Arduino board you are using to compile code correctly and communicate at the right speed.

1. Connect your Arduino to your computer using the USB cable supplied with your board (typically USB-A to USB-B for Uno, USB-A to Mini-B for Nano).

2. In the IDE, go to Tools > Board > Arduino AVR Boards and select your board. For an Uno: select 'Arduino Uno'. For a Nano: select 'Arduino Nano'.

3. Go to Tools > Port and select the COM port that your Arduino is connected to. On Windows it will be COMx; on macOS it will be /dev/cu.usbmodem... ; on Linux /dev/ttyUSBx or /dev/ttyACM0.

4. If no port appears, your computer has not recognised the board. This usually means missing drivers. For Nano clones using the CH340 USB chip, install the CH340 driver from the chip manufacturer's website.

Step 3: Understanding Sketch Structure

Every Arduino sketch has two mandatory functions:

void setup()

The setup() function runs once when the Arduino powers on or is reset. Use it for initialisation: setting pin modes, beginning serial communication, initialising libraries. Code here runs exactly once.

void loop()

The loop() function runs continuously after setup() completes. It repeats over and over as long as the Arduino has power. Your main program logic goes here.

A minimal sketch structure looks like this: void setup() { } and void loop() { } — even these empty functions are required. Remove either and your sketch will not compile.

Step 4: Your First Sketch — LED Blink

The LED Blink sketch is the 'Hello World' of Arduino. It makes the built-in LED (connected to pin 13) blink on and off repeatedly.

In the IDE, go to File > Examples > 01.Basics > Blink. This opens the classic Blink sketch. The code uses three functions: pinMode(LED_BUILTIN, OUTPUT) in setup() to configure pin 13 as an output; and in loop(): digitalWrite(LED_BUILTIN, HIGH) to turn the LED on, delay(1000) to wait 1 second, digitalWrite(LED_BUILTIN, LOW) to turn it off, and delay(1000) to wait 1 second again.

Step 5: Compile and Upload

1. Click the checkmark (Verify) button in the toolbar to compile your sketch. This checks for errors. A green 'Done compiling' message in the console means success.

2. Click the right-arrow (Upload) button. The IDE compiles and uploads the sketch to your Arduino. The TX and RX LEDs on your board will flash rapidly during upload.

3. After 'Done uploading' appears, observe your Arduino. The small LED near pin 13 should be blinking on and off every second.

Congratulations — you have programmed your first Arduino sketch!

Core Arduino Functions to Know

Digital I/O

pinMode(pin, mode): Sets a pin as INPUT, OUTPUT, or INPUT_PULLUP. Must be called before using a pin. digitalWrite(pin, value): Sets a digital output pin HIGH (5V) or LOW (0V). digitalRead(pin): Reads the state of a digital input pin (returns HIGH or LOW).

Analog I/O

analogRead(pin): Reads voltage on an analog input pin (A0–A5 on Uno). Returns 0–1023 for 0–5V. analogWrite(pin, value): Writes a PWM signal to a PWM-capable digital pin. Value range 0–255.

Timing

delay(ms): Pauses execution for the specified number of milliseconds. Simple but blocks all other code during the pause. millis(): Returns the number of milliseconds since the Arduino powered on. Use for non-blocking timing — run code at intervals without freezing the loop.

Serial Communication

Serial.begin(9600): Initialise serial communication at 9600 baud. Serial.println(value): Print a value followed by a newline to the Serial Monitor. Serial.print(value): Print without newline. Open the Serial Monitor (Tools > Serial Monitor, or Ctrl+Shift+M) to see output. Set the baud rate in the Serial Monitor to match your Serial.begin() value.

Understanding Variables and Data Types

Variables store data that your program uses. Key data types in Arduino:

• int: Integer, -32768 to 32767. Most common type for counters, sensor readings, pin numbers.

• long: Larger integer, -2,147,483,648 to 2,147,483,647. Use for millis() values which exceed int range.

• float: Decimal number. Used for sensor calculations requiring fractional values.

• bool: True or false. For flags and states.

• String: Text string. Convenient but uses significant memory — prefer char arrays for memory-constrained sketches.

• byte: Unsigned integer 0–255. Used for PWM values, colour bytes, single sensor bytes.

Common Beginner Mistakes

• Missing semicolons: Every statement in C++ ends with a semicolon. Forgetting one causes a compile error.

• Wrong board or port selected: The most common cause of upload failure. Double-check Tools > Board and Tools > Port.

• Using int for millis() values: millis() returns an unsigned long. Storing it in an int causes overflow errors after about 32 seconds.

• Using delay() for everything: Long delays freeze your loop and make your program unresponsive. Use millis()-based timing for anything more complex than a basic blink.

• Forgetting pinMode(): Reading from a pin without setting it as INPUT_PULLUP or INPUT gives unreliable floating readings.

• Not using the Serial Monitor for debugging: Most beginner bugs can be identified by printing variable values to the Serial Monitor.

Libraries: Extending Arduino's Capabilities

Libraries are pre-written code packages that add support for specific sensors, displays, communication protocols, and more. Using a library saves you from writing complex low-level code yourself.

To install a library in the Arduino IDE 2.x: open the Library Manager (Sketch > Include Library > Manage Libraries), search for the library you need, and click Install. Popular libraries include DHT sensor library (for DHT11/DHT22), LiquidCrystal_I2C (for I2C LCD displays), Servo (built-in), and WiFi (for ESP boards).

Next Steps After Blink

Once Blink works, explore other example sketches built into the IDE: DigitalReadSerial (read a button and print state to Serial Monitor), AnalogReadSerial (read a potentiometer), Fade (smooth LED dimming with PWM), and ReadAnalogVoltage (convert ADC reading to actual voltage).

After that, visit the Circuit Diary Projects page for guided Arduino projects with wiring diagrams and complete code. The Circuit Diary Blog also has a series of progressive Arduino tutorials taking you from beginner to building complex projects.

Conclusion

Programming Arduino is accessible to complete beginners. Install the IDE, select your board and port, understand the setup/loop structure, and use the built-in examples to build your first sketches. The Serial Monitor is your debugging superpower — use it constantly.

The most important thing is to keep experimenting. Modify the example sketches, break things, fix them, and gradually build your confidence. Every expert was once a beginner who blinked their first LED.
