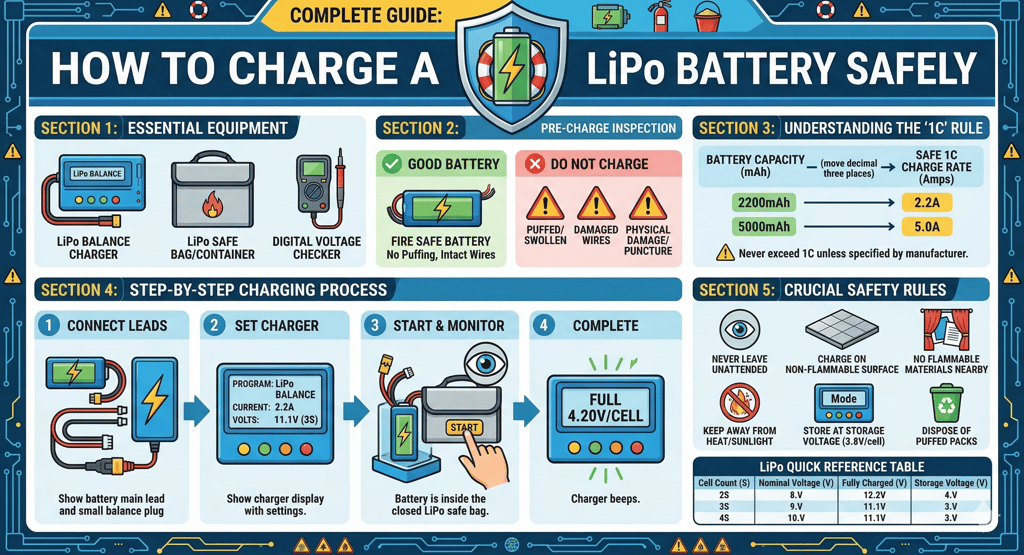

How to Charge a LiPo Battery Safely: Complete Guide

LiPo (Lithium Polymer) batteries are everywhere in modern electronics — drones, RC cars, robots, portable electronics, and maker projects. They offer excellent energy density (lots of power in a small, light package) and high discharge rates that make them ideal for high-performance applications. But they come with a significant caveat: charge and use them incorrectly, and they can swell, leak, catch fire, or even explode.

This is not meant to scare you away from LiPo batteries — millions of people use them safely every day. But safe LiPo use requires understanding the rules and following them consistently. This guide covers everything you need to know.

What Is a LiPo Battery?

A Lithium Polymer battery is a type of rechargeable battery that uses a lithium salt dissolved in a solid or gel polymer electrolyte, rather than the liquid electrolyte used in traditional lithium-ion cells. This allows LiPo cells to be made in almost any shape and to be extremely thin and lightweight.

LiPo cells are defined by their nominal voltage (3.7V per cell), fully charged voltage (4.2V per cell), and minimum safe discharge voltage (3.0V per cell, though 3.5V is a safer practical minimum to preserve cycle life).

Multi-cell LiPo packs are described by their S count: 1S = 1 cell = 3.7V nominal, 2S = 2 cells = 7.4V nominal, 3S = 3 cells = 11.1V nominal, and so on up to 12S and beyond for high-performance drones and electric vehicles.

Why LiPo Charging Safety Matters

Lithium-based batteries store enormous amounts of energy in a small volume. The electrolyte inside is flammable. If a cell is overcharged (above 4.2V), over-discharged (below 3.0V), physically damaged, or charged too quickly for its capacity, it can enter a condition called thermal runaway — a self-sustaining exothermic reaction that generates intense heat and flammable gases.

Thermal runaway causes the battery to swell, can puncture the casing, and in severe cases leads to fire. LiPo fires burn at extremely high temperatures, are difficult to extinguish with water, and produce toxic smoke.

The key rules to prevent these outcomes are: always use the correct charger, never exceed the charge rate, never overcharge, never over-discharge, and store batteries at the correct voltage.

Essential Equipment for Safe LiPo Charging

A Proper Balance Charger

The most important piece of LiPo safety equipment is a quality balance charger. A balance charger charges each cell in a multi-cell pack individually, ensuring they all reach exactly 4.2V at the same time. Without balance charging, cells can drift apart in voltage — some overcharging while others remain below capacity.

Popular chargers for hobbyists include the ISDT Q6 Plus, iCharger DX6, and the budget-friendly HTRC T150. For beginners, look for a charger that supports your cell count, has an internal power supply (no separate PSU needed), and offers a clear balance charging mode.

LiPo Safe Bag

A LiPo safe bag (also called a LiPo guard bag) is a fireproof/fire-resistant container designed to contain a LiPo fire if the battery enters thermal runaway during charging. It will not prevent a fire, but it can contain it and prevent it from spreading to your home. Always charge LiPo batteries inside a LiPo safe bag — it is inexpensive insurance.

Correct Connectors and Wiring

Ensure your charge leads and battery connectors are in good condition. A loose or corroded connector creates resistance and heat. Never leave a charging LiPo unattended without a safe bag, and ensure the charging area is free of flammable materials.

Understanding LiPo Capacity and C Rating

LiPo batteries are rated in milliamp-hours (mAh) — the total charge they can store. A 1000mAh (1Ah) battery can theoretically deliver 1000mA for 1 hour.

The C rating describes charge and discharge rate relative to capacity. 1C = a rate equal to the capacity in amps. For a 1000mAh battery: 1C = 1.0A, 2C = 2.0A, 0.5C = 0.5A.

The standard safe charge rate for most LiPo batteries is 1C. A 2200mAh battery should be charged at no more than 2.2A unless the manufacturer explicitly states a higher safe charge rate. Some high-quality packs are rated for 2C or even 5C charging, but this is not universal and charging faster generates more heat.

Step-by-Step: How to Charge a LiPo Battery

1. Inspect the battery before charging. Check for any puffing (swelling), damage to the casing, or damaged wires. A puffed battery should not be charged — discharge it slowly to storage voltage and dispose of it properly.

2. Place the battery inside the LiPo safe bag.

3. Connect the balance lead (the small multi-pin connector with wires from each cell) to the balance port on your charger. The balance lead is what allows the charger to monitor and equalise individual cell voltages.

4. Connect the main charge lead (the larger XT60, Deans, or EC3 connector) to the charger's charge port.

5. Select the correct cell count on your charger. Verify by counting cells or reading the pack label (1S, 2S, 3S, etc.). Setting the wrong cell count is dangerous — a 3S pack set to 4S will be overcharged to 16.8V instead of 12.6V.

6. Set the charge current to 1C (or the specific rate recommended for your pack).

7. Select the LiPo Balance Charge mode on your charger.

8. Start the charge cycle and monitor the initial minutes to ensure the charger reads the correct cell count and current is flowing correctly.

9. Do not leave the charging battery completely unattended. Check on it periodically.

10. When charging is complete, the charger will beep/indicate. Disconnect promptly — do not leave it on the charger after the cycle completes.

LiPo Storage Voltage

If you will not be using a LiPo battery for more than a few days, store it at storage voltage rather than fully charged or fully discharged. Storage voltage for a LiPo cell is approximately 3.80–3.85V per cell.

A 3S pack at storage voltage = 3 x 3.82V = 11.46V. Most quality chargers have a dedicated Storage mode that will either charge up to storage voltage or discharge down to it as needed.

Storing a LiPo fully charged (4.2V/cell) for extended periods causes cathode degradation and reduces the battery's long-term capacity. Storing fully discharged (or allowing it to self-discharge below 3.0V/cell) causes irreversible capacity loss and can make the battery unsafe to charge.

How to Safely Discharge an Old or Damaged LiPo

When a LiPo is too damaged, too puffed, or too old to continue using safely, it must be disposed of properly. Never put a lithium battery in general household recycling or rubbish.

To safely prepare it for disposal: discharge it slowly using a LiPo discharger or by connecting it to a bulb or resistor load that draws about 1C until the voltage drops below 1V per cell. Some chargers have a discharge mode. Once below 1V/cell, the battery chemistry is effectively neutralised. Then dispose of it at a battery recycling point.

Common LiPo Charging Mistakes

• Charging without a balance lead connected — individual cells can drift to dangerous voltages.

• Setting the wrong cell count on the charger — potentially catastrophic overcharge.

• Charging at more than 1C without confirming the pack's rated charge rate.

• Leaving a fully charged LiPo stored for weeks or months.

• Charging a visibly puffed or damaged battery.

• Charging indoors without a LiPo safe bag on a flammable surface.

Signs Your LiPo Battery Is Unsafe

• Puffing or swelling of the pack casing — the most common warning sign.

• Significant voltage difference between cells (more than 0.1V after balance charging).

• Pack becomes unusually hot during normal use or charging.

• Reduced capacity — battery depletes much faster than it used to.

• Physical damage, punctures, or frayed wiring.

If you observe any of these signs, do not attempt to charge or use the battery. Discharge it safely and dispose of it.

Conclusion

LiPo batteries are fantastic power sources for electronics and maker projects, offering excellent energy density and high discharge rates. But they demand respect. Use a quality balance charger, always charge in a LiPo safe bag, set the correct cell count and charge rate, store at storage voltage, and inspect your packs regularly.

Follow these rules consistently, and LiPo batteries will serve you reliably for hundreds of charge cycles. For more electronics project guides where LiPo batteries are used, visit the Circuit Diary Projects page and the Circuit Diary Blog.
