How Solar Panels Work: A Simple Explanation for Everyone

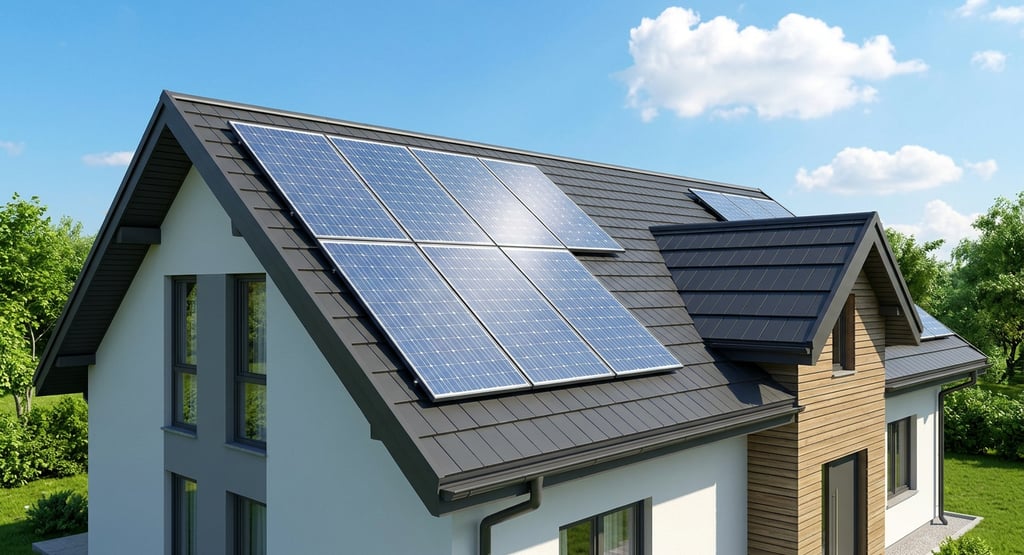

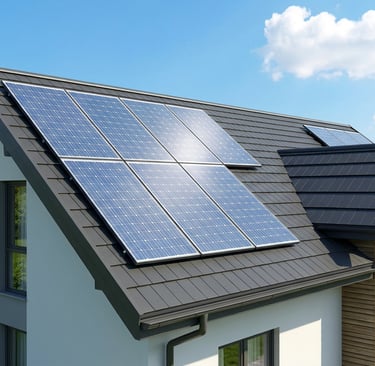

Solar panels are everywhere now — on rooftops, in fields, on satellites, and even integrated into backpacks and phone cases. But while most people understand that solar panels turn sunlight into electricity, the details of how that actually works remain mysterious to many.

In this guide, we will explain exactly how solar panels work — from the atomic level physics of the photovoltaic effect right through to the wiring and inverters that deliver usable power to your home or device. No engineering degree required.

The Big Picture: Solar Energy Conversion

At its core, a solar panel is a device that converts light energy (photons from the sun) into electrical energy (the flow of electrons). This process is called the photovoltaic effect, and it was first discovered by French physicist Edmond Becquerel in 1839.

The energy conversion happens inside individual solar cells — the small square tiles you can see on any solar panel. A typical residential solar panel contains 60 to 72 solar cells wired together. Each cell produces a small DC voltage, and combining many cells multiplies the total output.

What Is the Photovoltaic Effect?

To understand how solar cells work, you need a very brief lesson in semiconductor physics. Bear with us — this is actually fascinating once it clicks.

Silicon: The Foundation

Almost all commercial solar cells are made from silicon — the same material used in computer chips. Silicon is a semiconductor, meaning it conducts electricity under some conditions but not others, which makes it ideal for controlling electrical current.

Pure silicon has four electrons in its outer shell and tends to form stable crystalline structures where each atom shares electrons with its four neighbours. On its own, it is a poor conductor. To make it useful in solar cells, scientists dope it — adding tiny amounts of other elements to change its electrical properties.

N-Type and P-Type Silicon

Two types of doped silicon are used in a standard solar cell:

N-type silicon is doped with phosphorus (which has five outer electrons). The extra electron has nowhere to bond, so it becomes a free carrier that can conduct electricity. N-type silicon has an excess of free electrons (negative charge carriers).

P-type silicon is doped with boron (which has three outer electrons). This creates 'holes' — spaces where an electron is missing. P-type silicon has an excess of positive charge carriers.

The P-N Junction

A solar cell is built by placing N-type and P-type silicon layers in contact with each other. At the boundary (the P-N junction), electrons from the N-type side drift into the P-type side and fill some holes, creating a zone with no free carriers — the depletion region — and a built-in electric field pointing from N to P.

This built-in electric field is the key to the photovoltaic effect. It acts like a one-way valve for electrons.

What Happens When Light Hits the Cell

When a photon from sunlight strikes the solar cell with enough energy, it can knock an electron loose from a silicon atom, creating a free electron-hole pair. The built-in electric field at the P-N junction then separates this pair: it pushes the free electron toward the N-type side and the hole toward the P-type side.

This charge separation creates a voltage difference — just like the two ends of a battery. Connect a wire to the metal contacts on the top and bottom of the cell, and the electrons have a path to flow, creating an electric current. The photovoltaic effect converts light directly into electrical current with no moving parts, no combustion, and no emissions.

From Solar Cell to Solar Panel

A single silicon solar cell produces about 0.5 to 0.6 volts of DC electricity — not nearly enough for most applications. Solar panels solve this by connecting many cells in series (to increase voltage) and parallel (to increase current capacity).

A standard 60-cell panel connecting cells in series produces about 30–36 volts open-circuit voltage. Under load (real operating conditions), it typically outputs around 17–21 volts and produces 250–400 watts of power depending on cell efficiency and panel area.

The cells are encapsulated in layers of protective material: a front glass sheet for weather resistance, an EVA (ethylene-vinyl acetate) polymer encapsulant, the solar cells themselves, another EVA layer, and a durable polymer backsheet. A metal frame surrounds the whole assembly for structural integrity and mounting.

Types of Solar Panels

Monocrystalline

Made from a single continuous crystal of silicon. These cells are the most efficient (19–22% for commercial panels) and have a distinctive uniform dark appearance. They are also the most expensive but occupy less roof space for the same power output.

Polycrystalline

Made by melting multiple silicon fragments together, creating a cell with a blue speckled appearance. Slightly less efficient (15–18%) but cheaper to produce. A good choice when cost is the primary concern.

Thin-Film

Deposited as a thin layer of photovoltaic material (various options exist: amorphous silicon, cadmium telluride, CIGS) onto glass, metal, or plastic. Thin-film panels are flexible, lightweight, and cheap, but less efficient (10–13%). Ideal for large-scale ground installations or applications where flexibility matters.

The Full Solar Energy System

A solar panel produces DC electricity — but most homes run on AC electricity. Additionally, the sun does not shine at night. A complete solar energy system for a home requires several more components:

Solar Charge Controller

In off-grid systems with battery storage, a charge controller sits between the panels and the battery bank. It regulates the voltage and current going into the batteries to prevent overcharging and deep discharge. There are two main types: PWM (Pulse Width Modulation) controllers (simple and cheap) and MPPT (Maximum Power Point Tracking) controllers (more efficient, better for larger systems).

Inverter

The inverter is the brain of a grid-tied solar system. It converts the DC electricity from the panels into AC electricity at the correct voltage and frequency (110V/60Hz in North America; 230V/50Hz in Europe). Modern string inverters, microinverters (one per panel), and power optimisers all serve this function with different trade-offs in cost, performance, and monitoring capability.

Battery Storage

Optional in grid-tied systems but essential for off-grid setups. Battery banks store excess solar energy generated during the day for use at night or during cloudy periods. Common battery types include lead-acid (cheap but heavy and low cycle life), lithium iron phosphate (LiFePO4, long life and safe), and the well-known Tesla Powerwall (a premium home energy storage product).

Grid Connection (Net Metering)

In a grid-tied system without batteries, any excess power your panels produce is fed back into the electrical grid. Your utility meter runs backwards (or a smart meter logs the export), and you receive a credit on your bill — this is called net metering. The grid effectively acts as a virtual battery.

How Much Power Do Solar Panels Produce?

Solar panel output depends on several factors:

• Panel wattage: A 400W panel produces 400W under Standard Test Conditions (1000 W/m2 irradiance, 25°C cell temperature).

• Sunlight hours: Also called Peak Sun Hours (PSH). A location might receive 4–6 PSH per day on average.

• Tilt and orientation: South-facing (in the Northern Hemisphere), tilted at an angle equal to your latitude, maximises annual energy production.

• Temperature: Solar cells are less efficient at higher temperatures. Output decreases about 0.4% per degree Celsius above 25°C.

• Shading: Even partial shading of one cell can significantly reduce output from the whole string of cells it belongs to.

As a rough rule: a 1kW system produces about 4–6 kWh per day on average in a sunny climate. A typical UK home uses about 10 kWh/day; a US home uses about 30 kWh/day.

Solar Panel Efficiency: What Does It Mean?

Solar panel efficiency is the percentage of sunlight energy that is converted into electricity. Standard panels today are 17–22% efficient. This sounds low, but consider that the sun delivers approximately 1000 watts per square metre at peak — even at 20% efficiency, that is 200 watts per square metre, which is remarkable for a completely passive, maintenance-free device.

Research panels have achieved efficiencies above 47% (using multi-junction concentrated cells), but these are not economically practical for home installation. The trend for commercial panels is a gradual improvement of about 0.5% efficiency per year.

How Long Do Solar Panels Last?

Most solar panels come with a 25 to 30-year performance warranty, guaranteeing at least 80% of rated output at the end of the period. In practice, panels often continue producing power well beyond 30 years, though at gradually declining efficiency.

The main degradation mechanism is UV exposure causing the encapsulant to yellow, and potential-induced degradation (PID) from high voltage stress. Quality panels from reputable manufacturers with good encapsulation and anti-PID circuitry can last 40 or more years.

DIY Solar Projects for Makers

You do not need a full rooftop installation to start experimenting with solar energy. Small solar panels (5W–50W) are affordable and perfect for maker and electronics projects. Common DIY solar applications include:

• Solar-powered Arduino weather station

• Off-grid garden lighting with LiPo battery and solar charge controller

• Portable phone charger using a small 10W panel and USB power bank circuit

• Solar-powered irrigation system with moisture sensor and pump

• Remote sensor nodes powered by a small panel and supercapacitor

For hands-on solar project guides, visit the Circuit Diary Projects page.

Conclusion

Solar panels work by exploiting a quantum-mechanical property of silicon to convert photons directly into electrons. The photovoltaic effect creates a charge separation at the P-N junction, drives current through an external circuit, and produces clean DC electricity with no moving parts.

Paired with inverters, charge controllers, and optionally battery storage, solar panels can power everything from tiny sensors to entire homes. As panel costs continue to fall and efficiency continues to rise, solar energy is increasingly the most cost-effective source of new electricity generation worldwide.

Whether you are planning a rooftop installation or just experimenting with a small solar cell in a maker project, understanding how these devices work will help you design better, more efficient systems.
