Introduction

Modern GPUs are engineering marvels — and thermal nightmares. The NVIDIA RTX 4090 draws up to 450W at full load. Multiply that across a GPU cluster running 24/7 AI inference or video rendering, and you have a serious heat problem on your hands.

Air cooling has served us well, but for high-density compute environments it is increasingly hitting its limits. GPU liquid cooling has moved from a hobbyist curiosity to a mission-critical strategy for data centers, AI research labs, and performance-first PC builders.

This guide goes deeper than the basics. We cover every major cooling method, the real trade-offs between AIO and custom loop systems, what tools you actually need, and how to avoid the expensive mistakes that plague first-time liquid cooling builds.

→ Related Read: Humanoid Robots and the Truth Behind $5 Trillion Predictions — how advanced autonomous systems manage thermal loads at scale

Why Air Cooling Struggles With Today's GPUs

When the GTX 780 Ti launched in 2013, its 260W TDP was considered substantial. Today's flagship GPUs have roughly doubled that figure. Traditional heatsink-and-fan coolers struggle to handle this heat density for three core reasons:

Heat flux density. Modern GPUs pack more transistors into smaller die areas, concentrating heat in a tiny surface area that air coolers cannot efficiently contact.

Sustained load performance. Air coolers handle peak temperatures adequately, but sustained workloads — LLM training runs lasting hours, video rendering pipelines — push chips into thermal throttling, reducing clock speeds and output.

Acoustic penalties. Running fans at the speeds needed to cool a 400W+ GPU generates noise levels that are unworkable in many professional environments.

Liquid cooling addresses all three. Coolant is a dramatically better thermal conductor than air, pumps run quietly regardless of thermal load, and a well-designed loop can sustain maximum GPU clocks indefinitely under full load.

The 3 Main Types of GPU Liquid Cooling

1. Direct-to-Chip Cooling (Cold Plate) A cold plate attaches directly to the GPU die and circulates chilled liquid across the chip's surface. The heated coolant flows to a radiator or cooling unit where the heat is rejected. This is the most widely deployed method in both consumer and enterprise settings — effective, relatively straightforward, and compatible with standard rack infrastructure.

Best for: High-performance workstations, gaming rigs, and single-GPU servers where targeted chip cooling is the primary goal.

2. Immersion Cooling The entire server or GPU board is submerged in a tank filled with a non-conductive dielectric fluid. The fluid absorbs heat from every component — not just the GPU — and circulates to an external heat exchanger.

Immersion cooling is the most thermally efficient method available and eliminates fans entirely. It is also the most expensive and complex to deploy, requiring specialized tanks, custom infrastructure, and compatible hardware. Major hyperscalers and HPC facilities are adopting it for the densest compute racks.

Best for: Large-scale data centers running GPU clusters at extreme power densities (20kW+ per rack).

3. Rear Door Heat Exchangers (RDHx) A rear door heat exchanger replaces the standard rack door with one containing water-cooled coils and fans. Hot air exhausted by servers is cooled before re-entering the data center.

This does not liquid-cool the GPU directly but reduces the overall room cooling burden. It is a practical retrofit option for facilities adding GPU density without a full infrastructure overhaul.

Best for: Data centers accommodating higher-density hardware within existing air-cooled infrastructure.

AIO vs. Custom Loop: Which Is Right for You?

All-in-One (AIO) Coolers AIOs come pre-filled, pre-assembled, and ready to install. A pump-reservoir block attaches to your GPU via a water block adapter, connected by flexible tubing to a sealed radiator. No filling, no bleeding, no compatibility research. Installation takes 30–60 minutes.

The trade-off is customization — AIO loops cool only the GPU core. On high-end GPUs, VRAM and voltage regulator modules (VRMs) may still require additional thermal management that AIOs cannot address.

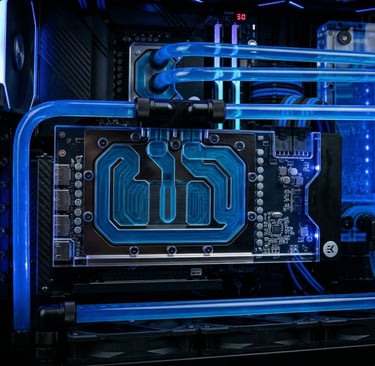

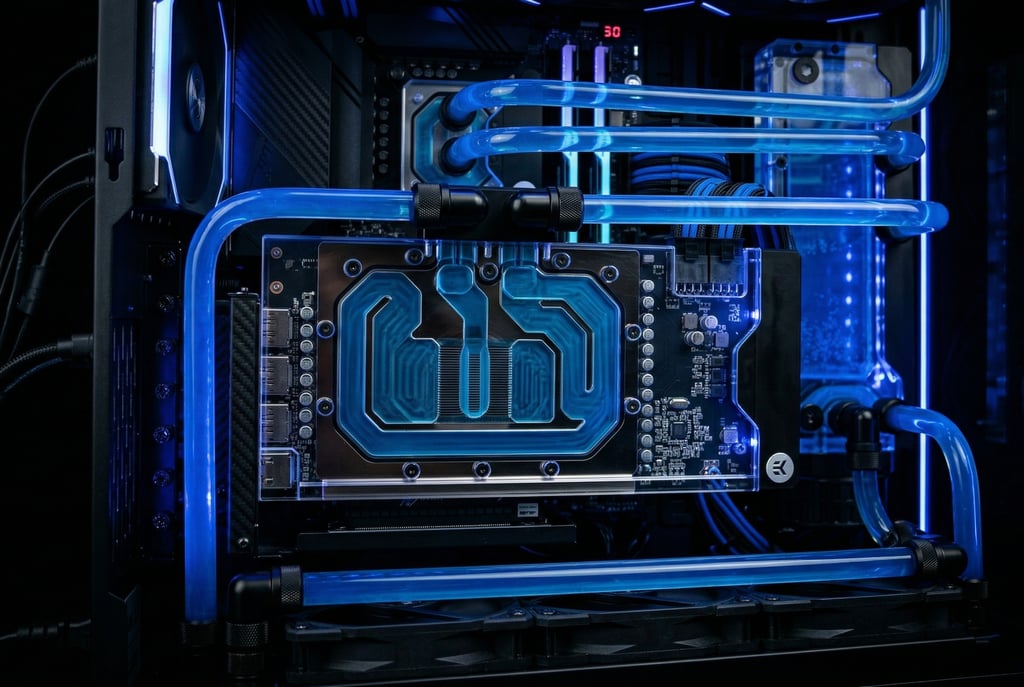

Custom Loops You source every component separately — reservoir, pump, full-cover GPU water block, radiator(s), fittings, tubing — and assemble the circuit yourself. Full-cover blocks contact every thermal source on the card: die, VRAM, and VRMs. Builders consistently report GPU junction temperatures 15–25°C lower than the best air coolers under sustained load.

Custom loops also scale across an entire system — GPU, CPU, multiple cards in a single loop. For AI workstations running multi-GPU setups, this consolidation meaningfully reduces infrastructure complexity.

The costs are real: quality GPU water blocks run $100–$200 each, build time is significantly longer, and ongoing maintenance is required.

8 Critical Considerations Before You Build

1. Physical Space and Radiator Sizing A single high-power GPU typically requires at minimum a 360mm triple-fan radiator. Multi-GPU setups scale accordingly. Measure your case, chassis, or rack before selecting components — radiator footprint is the most common planning oversight.

2. Datacenter Infrastructure Compatibility Enterprise systems interface with building infrastructure — chilled water loops, cooling distribution units (CDUs), or custom manifolds. Verify compatibility with your facility's cooling capacity before deployment.

3. Total Cost of Ownership Liquid cooling has higher upfront costs than air but often delivers positive ROI through reduced energy consumption, lower failure rates from thermal stress, and sustained peak performance — more compute per dollar over the system's life.

4. Maintenance Commitment Custom loops require fluid top-offs every 6–12 months, annual leak inspections, and periodic loop flushing (typically every 1–2 years). AIO coolers require less maintenance but should be inspected for pump degradation annually.

5. Coolant Selection and Corrosion Prevention Use coolants specifically designed for liquid cooling loops. Pure distilled water accelerates galvanic corrosion between dissimilar metals. Quality premixed coolants include biocides and corrosion inhibitors. Do not mix copper and aluminum loop components without appropriate inhibitor chemistry.

6. Leak Prevention and Testing Protocol Run your pump for 24–48 hours before powering on any hardware. Monitor fittings, water block inlets/outlets, and radiator ports during this break-in period. Compression fittings are more reliable than barb fittings for long-term, vibration-prone environments.

7. Future GPU Upgrade Compatibility GPU water blocks are GPU-specific. When planning a custom loop, factor in water block availability and cost for your anticipated upgrade path. Some manufacturers offer universal blocks designed to maintain compatibility across GPU generations.

8. Energy Efficiency and ESG Goals Well-designed liquid cooling systems reduce Power Usage Effectiveness (PUE) by enabling higher server density, eliminating hot spots, and reducing total fan power consumption — a meaningful advantage for organizations with sustainability targets.

→ Related Read: Solar Panel Maintenance Guide — another domain where proactive thermal management directly determines long-term efficiency and ROI

5 Essential Tools for Building and Monitoring Your System

1. GPU Temperature Monitoring Software GPU-Z provides per-sensor temperature readings including junction (hotspot) temperature — the metric that most directly determines throttling behavior. HWiNFO64 logs historical data for identifying thermal trends. NVIDIA's nvidia-smi supports programmatic monitoring for automated alerting in server environments.

2. Leak Detection Kits UV-reactive dye combined with UV flashlight inspection after initial fill catches micro-leaks before they cause hardware damage. Electronic conductivity-based leak detectors provide real-time alerts for enterprise deployments where overnight hands-off monitoring is required.

3. Flow Rate Meters A flow rate of 1–2 liters per minute is adequate for most single-GPU systems. Below that range, coolant heats significantly as it passes through the GPU block. Inline flow meters from Aquacomputer or Koolance monitor flow continuously and detect early pump degradation or blockage.

4. Coolant Quality Testers A refractometer measures coolant concentration, verifying your premixed coolant is within the specified range and detecting contamination. Test annually and whenever you observe unexpected temperature increases.

5. Thermal Imaging Camera (Enterprise) A thermal camera identifies hot spots on PCBs, fittings, and radiators not captured by GPU sensor data. For data centers managing dozens of liquid-cooled nodes, a periodic thermal sweep catches developing issues before they become failures.

Common Mistakes to Avoid

• Ignoring VRM and VRAM temperatures. Core-only coolers leave VRMs air-cooled; these can throttle under heavy sustained loads even when the GPU die temperature looks healthy. Monitor all available sensors.

• Over-tightening fittings. Compression fittings require firm seating, not maximum torque. Over-tightening acrylic reservoir tops causes hairline cracks that become leaks.

• Skipping the air-bleeding process. Bubbles in the loop reduce cooling efficiency and cause pump cavitation. Bleed thoroughly by cycling the pump on/off while gently tilting the system.

• Mixing incompatible metals. Copper and aluminum in the same loop with plain water creates galvanic corrosion rapidly. Use inhibitor-rich coolants or stick to one metal type throughout.

• Underrating the radiator. A radiator sized for 150W cannot adequately cool a 450W GPU. Calculate your total thermal load across all cooled components and size radiator surface area accordingly.

Is GPU Liquid Cooling Worth It in 2026?

For gaming PCs running occasional heavy sessions: a quality AIO GPU cooler delivers meaningfully lower temperatures and noise with minimal complexity. The performance-to-effort ratio is strong.

For AI workstations running sustained GPU workloads: custom liquid cooling is increasingly a necessity rather than a choice. Thermal throttling on air coolers directly translates to slower training runs and longer time-to-result.

For data centers deploying GPU clusters: the business case for direct-to-chip or immersion cooling is compelling at scale. Capital expenditure is substantial, but reductions in cooling infrastructure costs, improvements in compute density, and extension of hardware lifespan typically produce positive ROI within 2–3 years.

The GPU cooling decision is ultimately a TCO calculation: weigh upfront costs against the compounding value of sustained peak performance, lower failure rates, and reduced energy bills across the system's full operational life.
