ESP32 vs ESP8266: Which Wi-Fi Module Should You Buy?

When it comes to Wi-Fi-enabled microcontrollers for IoT projects, two names dominate the maker landscape: the ESP8266 and the ESP32, both made by Espressif Systems. These chips have transformed DIY IoT development by making Wi-Fi connectivity affordable (under $5) and accessible to hobbyists worldwide.

But which one should you choose? The ESP8266 has been around since 2014 and has an enormous community. The ESP32 is its more powerful successor with Bluetooth, more pins, and a faster dual-core processor. This guide explains the differences in plain language so you can make the right choice for your project.

What Is the ESP8266?

The ESP8266 was released by Espressif in 2014 and quickly became one of the most popular IoT chips in history. It features an 80 MHz (overclockable to 160 MHz) Tensilica L106 32-bit processor, 32–80KB of SRAM depending on configuration, 802.11 b/g/n Wi-Fi, and a small number of GPIO pins.

The most common development boards based on the ESP8266 are the NodeMCU (the original maker-friendly ESP8266 breakout), the Wemos D1 Mini (extremely compact), and the ESP-01 module (minimal, used in commercial products). All can be programmed using the Arduino IDE with the ESP8266 core library installed — making them feel like a supercharged Arduino with built-in Wi-Fi.

What Is the ESP32?

Released in 2016, the ESP32 is Espressif's follow-up to the ESP8266, addressing most of its limitations while adding new capabilities. It features a dual-core 240 MHz Xtensa LX6 processor (or a single-core version in some variants), 520KB of SRAM, 802.11 b/g/n Wi-Fi AND Bluetooth 4.2 / BLE, significantly more GPIO pins, built-in ADC and DAC channels, hardware I2C, I2S, SPI, and a host of other peripherals.

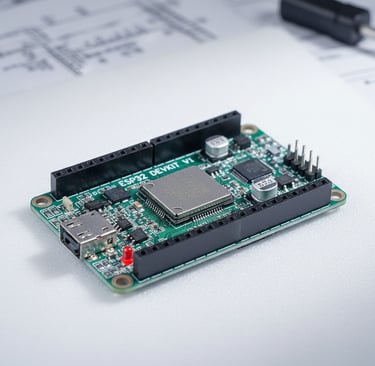

Common ESP32 development boards include the ESP32 DevKit (standard breakout board), the ESP32-CAM (with camera module for vision projects), the TTGO T-Display (with integrated colour display), and the ESP32-S3 and ESP32-C3 (newer variants from Espressif with updated features).

Processor and Performance

The ESP8266 runs a single 32-bit core at 80–160 MHz. It is capable for typical IoT tasks — reading sensors, connecting to MQTT brokers, serving small web pages — but can struggle with computationally intensive workloads.

The ESP32's dual 240 MHz cores provide roughly 6x the raw processing power. One core can handle Wi-Fi and networking (which the Espressif framework handles automatically) while the other runs your application code. This eliminates the Wi-Fi processing overhead that occasionally causes timing issues on the ESP8266.

Memory

This is one of the clearest differences. The ESP8266 has 32–80KB of user-accessible SRAM — enough for basic IoT code but constraining for complex applications, large JSON parsing, or image buffers.

The ESP32 has 520KB of SRAM, plus many variants include Bluetooth stack and additional features that use some of this RAM. External PSRAM (pseudo-static RAM, up to 8MB) can be added on some modules, enabling memory-intensive applications like image processing and larger web servers.

GPIO Pins Comparison

ESP8266 GPIO

The ESP8266 provides 11 usable GPIO pins (some have constraints: GPIO0, GPIO2, and GPIO15 have boot mode requirements; GPIO6-11 are used internally for flash). There is 1 analog input pin (ADC) with a 10-bit resolution, rated for 0–1V (requiring a voltage divider for 3.3V signals). No DAC output. One hardware I2C bus, one hardware SPI bus, one UART.

ESP32 GPIO

The ESP32 provides up to 34 GPIO pins (the exact number depends on the package and which are exposed on the dev board), 18 ADC channels with 12-bit resolution (0–3.3V), 2 DAC channels (8-bit), 2 hardware I2C buses, 3 hardware SPI buses, 3 hardware UART ports, 16 PWM channels, I2S interfaces, and a capacitive touch sensor interface on several pins.

The ESP32's hardware richness makes it far more flexible for complex projects involving multiple sensors, display interfaces, and audio.

Bluetooth: The Key Differentiator

The ESP8266 has no Bluetooth capability — it is Wi-Fi only. The ESP32 includes both classic Bluetooth (for audio and older BT devices) and Bluetooth Low Energy (BLE, for IoT devices, beacons, wearables, and pairing with smartphones). This dual-mode Bluetooth support is arguably the single most compelling reason to upgrade from an ESP8266 to an ESP32 for many projects.

BLE is essential for creating Bluetooth devices that work with standard phone apps (using the Generic Attribute Profile), proximity beacons, and low-power sensor networks.

Power Consumption

Power consumption is more nuanced than simple comparisons suggest, as both chips have multiple power modes. In active Wi-Fi mode, the ESP8266 draws 70–200mA and the ESP32 draws 100–250mA. In deep sleep mode, the ESP8266 can achieve around 20 microamps; the ESP32 achieves around 10 microamps.

For battery-powered projects, both can achieve multi-month or even multi-year battery life using aggressive deep sleep strategies, waking only briefly to take a sensor reading and transmit data.

Price

Both chips are cheap by any standard. ESP8266-based modules (NodeMCU, D1 Mini) cost $2–$4. ESP32 dev boards cost $4–$8. If your project only needs Wi-Fi and you have basic sensor/GPIO requirements, the ESP8266 saves a couple of dollars. For any project that benefits from Bluetooth, more GPIO, or more processing power, the ESP32 is worth the small premium.

Programming and Libraries

Both chips are fully supported in the Arduino IDE through Espressif's Arduino cores (ESP8266 Arduino core and ESP32 Arduino core). They are also supported by the ESP-IDF (Espressif IoT Development Framework, C-based), MicroPython, and CircuitPython.

The ESP8266 has a larger legacy library base due to its longer history, but the ESP32 ecosystem has caught up and surpassed it for most modern libraries.

When to Use ESP8266

• Projects requiring only basic Wi-Fi connectivity (MQTT, HTTP GET/POST, simple web server)

• Where cost is the primary constraint and every dollar matters

• Replacing an older ESP8266-based design where the existing code works well

• Ultra-compact form factor designs using the Wemos D1 Mini

When to Use ESP32

• Any project requiring Bluetooth (classic or BLE) alongside Wi-Fi

• Projects with multiple sensors, displays, or complex GPIO requirements

• Audio projects requiring I2S interface

• OTA (Over-the-Air) firmware updates (easier and more reliable on ESP32)

• Vision/camera projects using the ESP32-CAM

• Any project where the ESP8266's memory constraints are a problem

Newer Espressif Variants Worth Knowing

Espressif has released several newer variants beyond the original ESP32. The ESP32-S3 adds USB OTG and AI acceleration features. The ESP32-C3 uses a RISC-V core (rather than Xtensa LX6), is even more power-efficient, and costs similarly to the ESP8266 while supporting both Wi-Fi and BLE. The ESP32-C3 is arguably the best modern replacement for the ESP8266 for simple IoT projects.

Conclusion

For any new project in 2026, the ESP32 is almost always the better choice. The small price premium over the ESP8266 buys you dual-core processing, Bluetooth, significantly more GPIO and memory, and a more future-proof platform. The ESP8266 remains a valid choice for ultra-simple, cost-constrained designs or existing projects where it already works.
